Eaton 9PX

More power: The 9PX allows you to connect more devices by providing up to 28 percent more wattage compared to traditional UPSs.

Efficiency: The double-conversion online 9PX is the most efficient UPS in its class with a 93 percent efficiency rating in normal mode. Split-phase models offer both 120V and 208V output without a transformer; saving vertical rack (U) space, weight and cost.

Increased battery life: Eaton offers ABM® technology that increases battery service life by 50 percent. ABM uses an advanced, three-stage charging technique and closely monitors battery health to provide advanced notice when batteries need replacement.

Intuitive LCD interface: Eaton’s next-generation intuitive LCD interface offers a graphical interface that provides all critical UPS information in a single view. The user-friendly menu allows you to view information and control settings with the push of a button.

By integrating the bundled Intelligent Power® Software Suite (IPSS), you can monitor and manage your network power devices. IPSS enables you to:

• Seamlessly integrate with VMware’s vCenter™ Server™ virtualization management solution, as well as virtualization platforms such as Citrix® XenServer, Microsoft SCVMM™, Red Hat® and other Xen® open source platforms
• Initiate live migration of virtual machines (VMs) to automatically and transparently migrate them during power disruptions to unaffected devices with systems such as VMware vMotion™ and Microsoft Live Migration
• Gracefully shut down computers and VMs and host servers during an extended power outage

Versatile configurations

The 9PX has the versatility to meet the demands of a wide array of IT applications.

Each 9PX includes a 4-post rail kit.

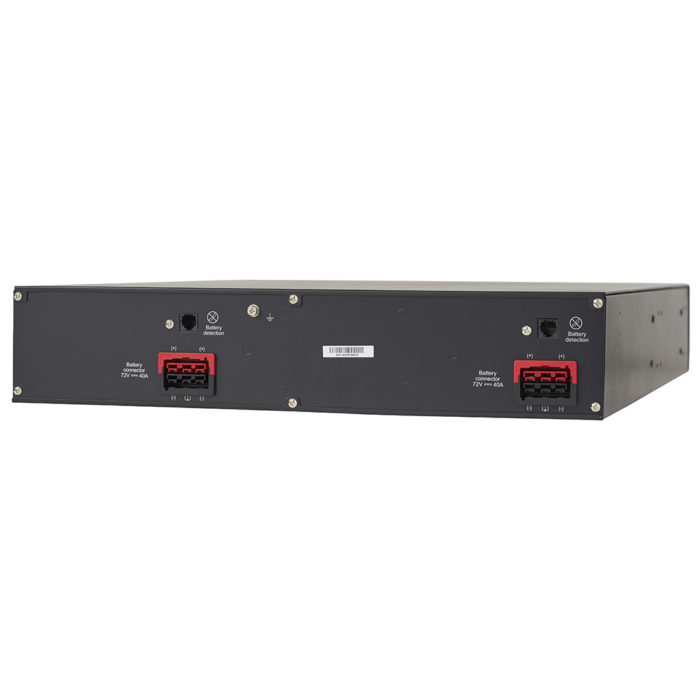

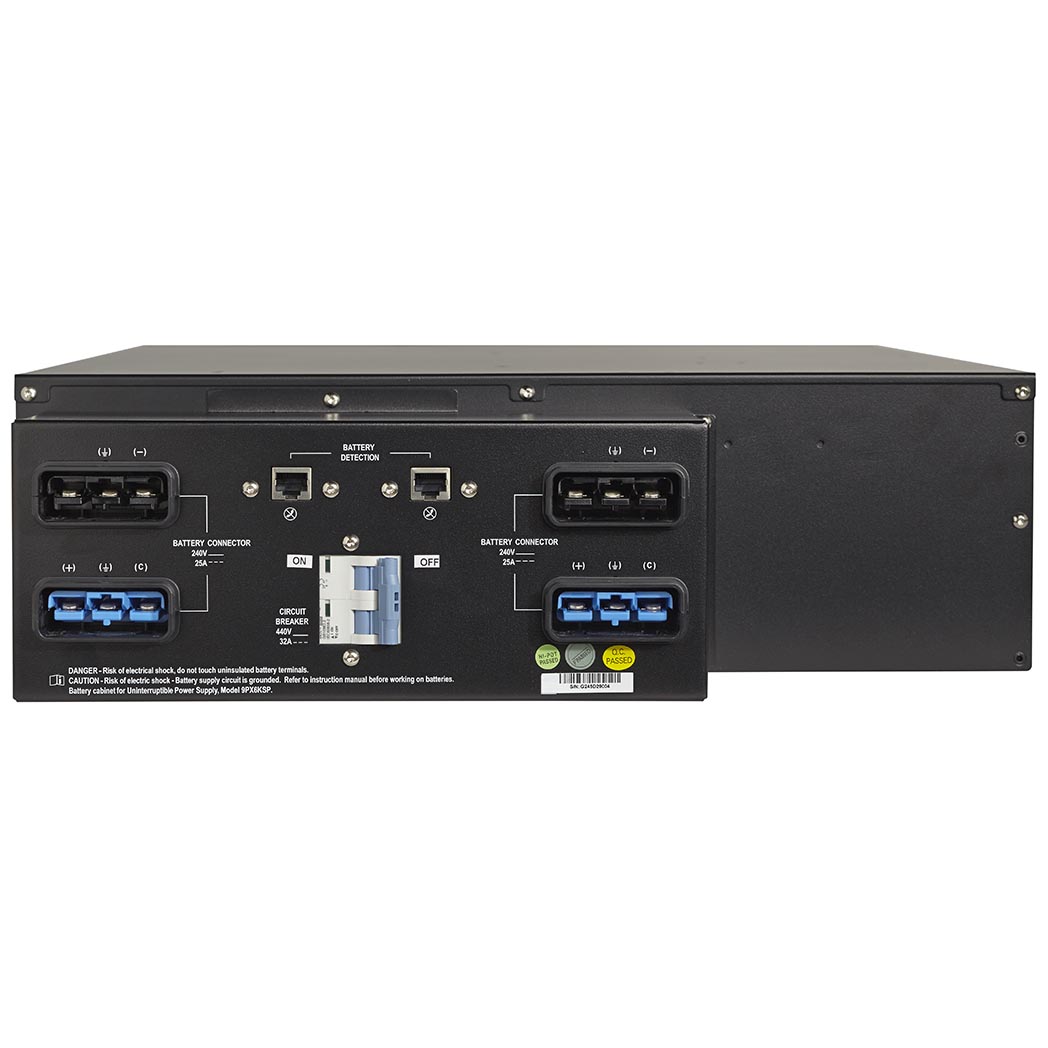

Add extended battery modules (EBMs) to both stand-alone tower and rackmount configurations for extended runtimes.

Graphical LCD interface

With an LCD interface that tilts 45 degrees for optimal viewing, rotates to match rack and tower installations, and provides clear information on UPS status and measurements, the 9PX makes local management easy.

The 9PX displays key data such as its ³93 percent efficiency rating, alarm history, runtime remaining, load percentage and more in a graphical format.

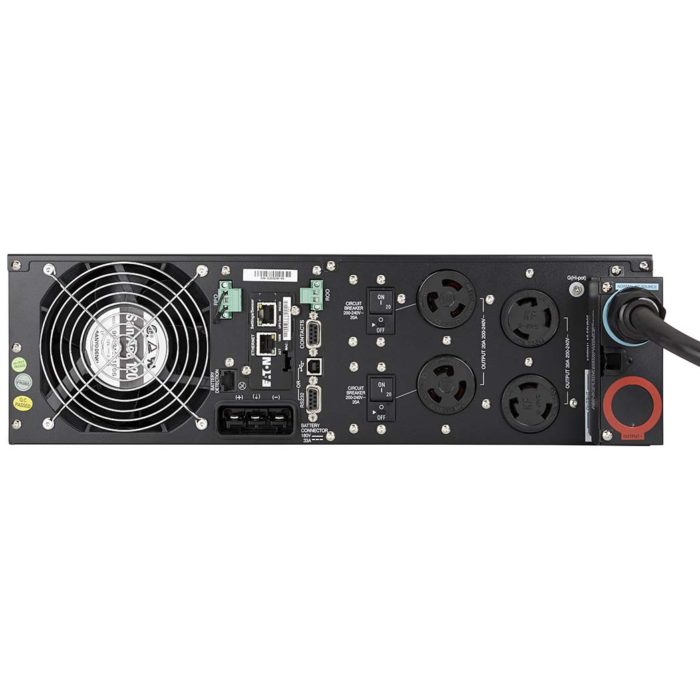

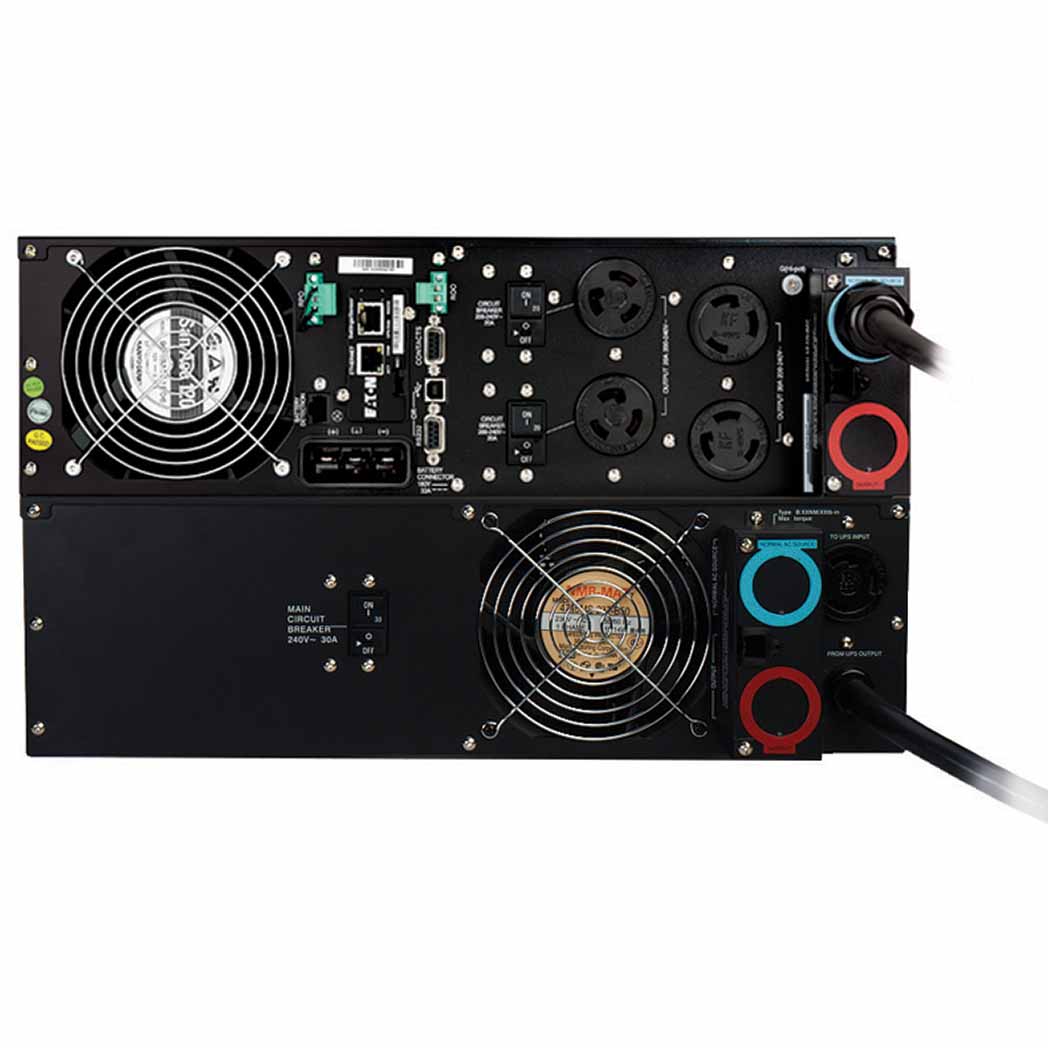

Split-phase models incorporate flexible receptacle configurations that natively offer both 208 and 120 volt. Rear panel of 9PX 6K split-phase shown above.

•
  Remote Power Off (RPO)
•
  EBM detection port
•
  Network Card-MS
  (bundled with UPS)
•
  EBM connector
•
  Remote On/Off (ROO)
•
  Output relay contact Ð DB-9 dry contact (common alarm as standard).
•
  USB port (cable included)
•
  RS-232 serial communication port (cable included)
•
  Output circuit breaker protection
•
  (2) L6-20R
•
  (2) L6-30R
•
  Ground bonding screw
•
  6-foot line cord with L6-30P
•
  Output terminal block for hardwired applications
•
  30A main circuit breaker
•
  (4) 20A circuit breakers
•
  (18) 5-20R outlets (accommodates 5-20P and 5-15P)
•
  L6-30P input cord
•
  (2) L14-30R
•
  (1) L6-30R
