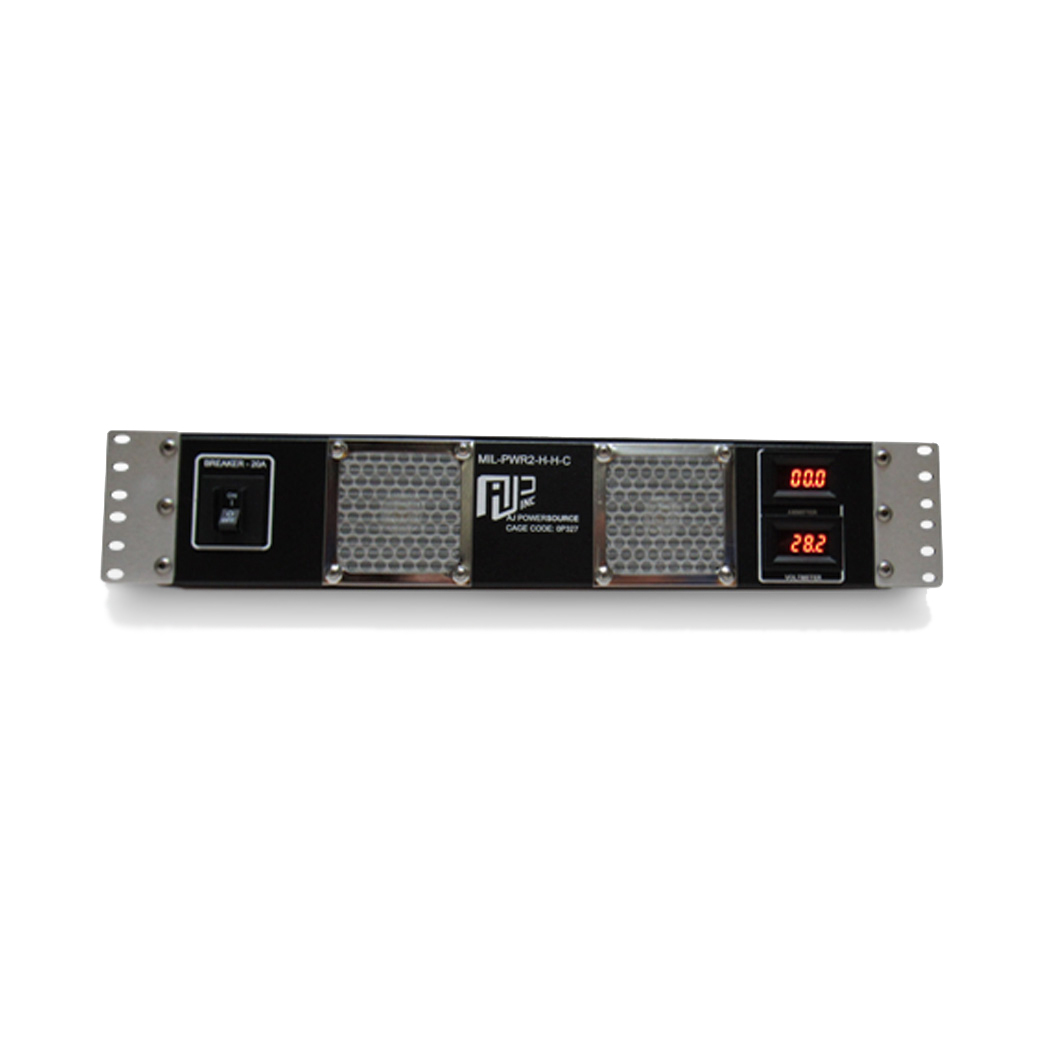

The MIL-PWR Series™ is a 2U power supply providing up to 8000 watts that is designed to meet MIL-1275-STD & MIL-461-STD for an Army operating base.
The MIL-PWR Series™ family of products provides reliable, cost effective AC to DC, DC to DC rack mount power solutions. The MIL-PWR Series offers a highly reliable standard commercial off the shelf (COTS) solution while providing shortened lead times in a rugged design. The output power levels range from 0-10,000 watts in a 1U-3U standard 19” rack mount configuration. The universal AC input of 90-264VAC can be either single or three phase for your configuration. Standard output options are available with a factory adjustable +/-10% of 3.3V, 5V, 12V, 24V, 28V & 48V (custom output voltages are available). The front to back airflow allows for cooling through the EMI covers and are easily removed and cleaned. The chassis is rated and designed for radiated and conducted EMI emissions. The chassis is designed for MIL-STD-810 shock, vibration, extended temperature & humidity. Pluggable options are available for use with the Backplane Modules (BPM).
