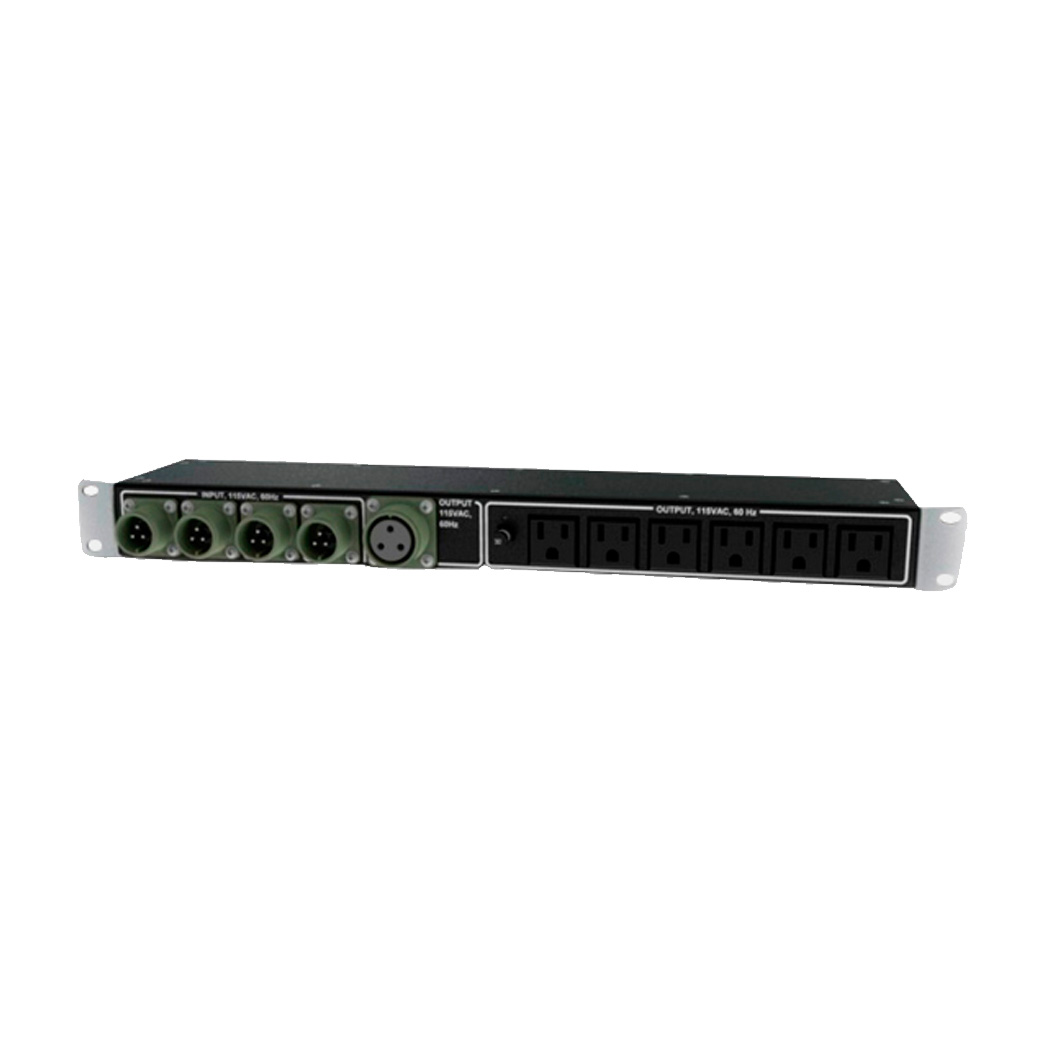

Remote Power Interconnect LBI transit case power supply power distribution is utilized for the connection of user equipment to up to 4 Powergrid™ UPS systems.
Each Powergrid™ Power Distribution unit is equipped with 6 standard NEMA 5-15P connections for interconnecting user equipment and 4 male MIL-style connectors for the power connection to up to 4 Powergrid™ UPS systems. The unit also hosts one MIL-style female connector for the interconnection or daisy chaining of one PG-RPIM-STD if additional user equipment connections are required. The unit is equipped with one primary power breaker that will disengage power to all user equipment ports as needed. The mounting brackets are designed to be removable or rotated either 90°/180°/270° to allow maximum mounting flexibility.
