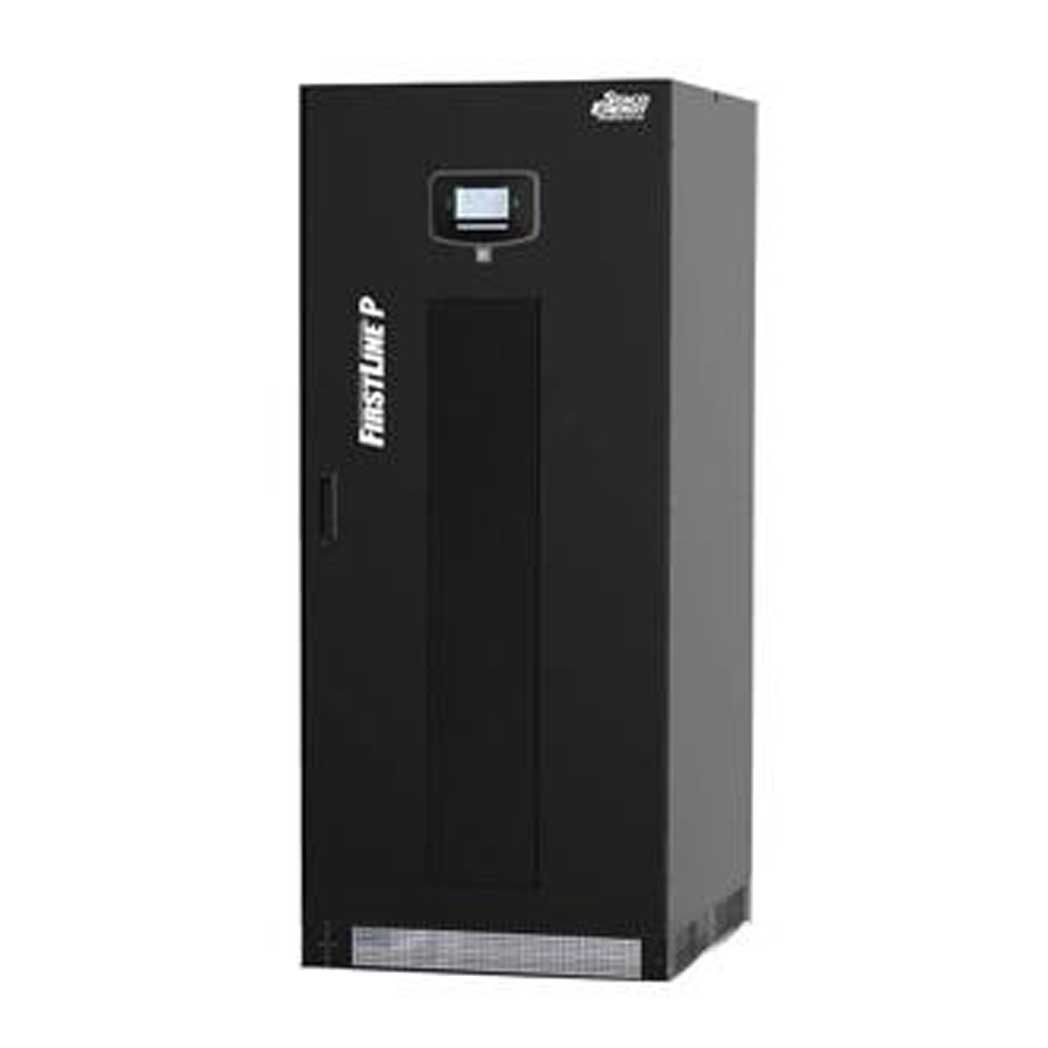

Staco FirstLine P 924 Lighting Inverter

Staco FirstLine P 924 Lighting Inverter

Three Phase, On-Line Double Conversion, UL924 Central Lighting Inverter

In the event of an AC power failure, FirstLine® PL 924 automatically supports the connected lighting loads on battery power and will continue to provide power without any interruption for a full 90 minutes. When the utility power returns to normal, FirstLine® P 924 will automatically recharge the batteries to be ready for the next power disturbance.

In addition to meeting life safety requirements, the FirstLine®P 924 can also increase the life expectancy of the protected lighting system and reduce long-term cost of ownership.

Description

  • Up to 98% Efficient
    • Lower energy costs and carbon footprint
  • Compact & Reliable
    • Requires either front, top or bottom access, so it can be placed against a wall to minimize footprint
    • Cooler operation extends internal component life
  • AC Input Performance
    • High input power factor of 0.99
    • Low input current distortion of  <= 3%
    • Power walk-in function that ensures progressive rectifier start-up
  • IGBT and Digital Signal Processor (DSP)
    • Reduces the impact of the ELS on the local supply
    • Simplifies installation where there is limited power capacity in the form of available electrical supply rating or generator size
  • Dual input
    • Main power and secondary emergency standby power increase resilience of single or parallel system configuration
  • High Performance Filter
    • Protects upstream power supply sources from harmonics and reactive power generated by the load's power
  • Menu Select Display
    • User friendly display is easy to see and intuitive to use
  • Worldwide Service Program
    • Factory trained service personnel maximize equipment life
    • Full start-up service & preventive maintenance lowers cost of ownership
  • Full Two Year Warranty

Staco FirstLine P 924 Lighting Inverter Brochure

Additional information

Brand

Staco

Availability

Midwest/Great Plains, National

Application

Data Center, Industrial/Outdoor, Medical

Product Type

AC Power Back-up Power (UPS)

Phase

3 Phase, Double Conversion

Topology

Double Conversion

Power Range

< 100 kVa, > 100 kVA

Specialty

Emergency Lighting
